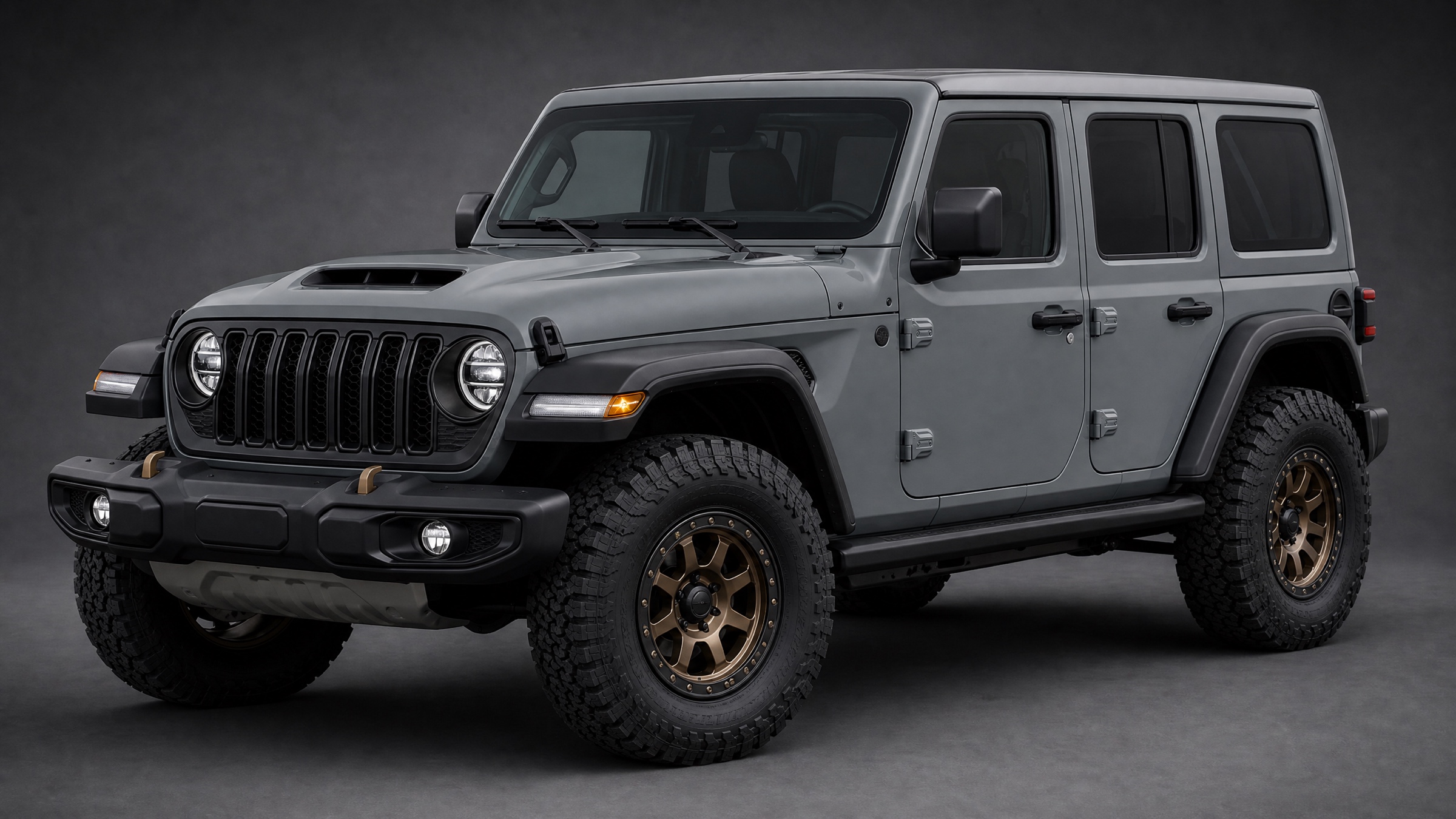

2024 Jeep Wrangler Rubicon 392 specs

At a glance

Model year

2024

Wheelbase

96.8 (2,460) — 2-door, 118.4 (3,008) — 4-door

Engines

6.4-liter V-8 (470 hp)

Transmissions

8HP75 8-speed automatic

Axle ratios

4.56

Transfer case

MP3022 SELEC-TRAC (low range 2.72:1)

Seating

2/2 (2-door), 2/3 (4-door)

Powertrain, axle ratio, payload and towing

One row per combination Jeep lists for the Rubicon 392. Jeep prints this table for the 4-door only.

Engines

Towing and EPA fuel economy as printed by Jeep

• 6.4-liter V-8: maximum gross trailer weight 3,500 lbs.. EPA mpg (city/hwy/combined): 12/16/14.

Transmissions and gear ratios

Transfer case and axles

• MP3022 SELEC-TRAC: Full-time; low range 2.72:1. Availability: Standard — Rubicon 392, Optional — Sport and Sahara.
• Front: 3rd generation Dana axles
• Differential type: Open or Tru-Lok electronic locking (Rubicon models)
• Rear: 3rd generation Dana axles
• Axle ratios: 3.45, 4.10 (Rubicon, Willys), 4.56 (Rubicon 392 and Xtreme 35 Pkg), 4.88 (opt Rubicon 3.6 liters)

Dimensions (inches, millimeters in parentheses)

• Wheelbase: 96.8 (2,460) — 2-door, 118.4 (3,008) — 4-door
• Overhang — Front: 29.5 (749.8) (Rubicon 392)
• Overhang — Rear: 40.3 (1,023) (Rubicon 392)
• Track — Front: 66.9 (1,699) (Xtreme 35 Pkg and Rubicon 392)
• Track — Rear: 66.9 (1,699) (Xtreme 35 Pkg and Rubicon 392)
• Overall Length (includes spare tire): 166.8 (4,237) (2-door) / 170.9 (4,341) (Xtreme 35 Pkg (2-door)) / 188.4 (4,785) (4-door) / 192.5 (4,890) (Xtreme 35 Pkg (4-door) and Rubicon 392)
• Overall Width: 79.3 (2,014) (Xtreme 35 Pkg and Rubicon 392)
• Overall Height: 80.0 (2,032) (Xtreme 35 Pkg and Rubicon 392)

Off-road angles and clearance

Measured by Jeep at curb weight with the standard tire shown. A value that differs between the 2-door and the 4-door is labeled.

Curb weight

Wheels, tires, brakes and steering

Wheels

• Standard (Rubicon 392): Type and material: Beadlock capable cast aluminum, Machined Face with Smoke Bronze Low Gloss Painted Pockets and Mid Gloss Black trim ring · Size: 17 x 8 in.

Tires

• Standard (Xtreme 35 and Rubicon 392): Size and type: LT315/70R17C, on/off-road, black sidewall · Mfr. and model: BFGoodrich All-Terrain T/A KO2 · Revs per mile (km): 604 (376)

Brakes

• Type: Power-assisted, anti-lock brake system
• Rear · Rotor size and type: 14 x .86 (350 x 22) vented rotor (Rubicon 392, Xtreme 35 Pkg (4-door))
• Rear · Caliper size and type: 2 (51) single-piston floating calipers (Rubicon 392, Xtreme 35 Pkg (4-door))

Steering

• Type: Electro-hydraulic power
• Overall ratio: 17.7:1 (2-door), 14.9:1 (4-door)
• Turning diameter (curb-to-curb) (ft. / m): 32.7 / 10.0 (2-door), 38.8 / 11.8 (4-door)
• Steering Turns (lock-to-lock): 3.6 (2-door), 3.2 (4-door), 3.1 (Rubicon 392, Xtreme 35 Pkg)
• P/S Pump: Electro-hydraulic

Reference figures from the Offroad Build Lab calculator

ORBL estimate These come from the calculator's own record for this vehicle (wrangler_rubicon392_2024), not from Jeep, and are estimates for planning. Where the same quantity appears above, Jeep's figure rules.

Reference tire

315/70R17 (35", stock)

Tire weight (each)

57 lb (estimate)

Wheel weight (each)

21 lb (estimate)

Wheel bolt pattern

5x127

Hub bore

71.5 mm

0-100 km/h

4.7 s (calculator engine: 6.4L HEMI V8)

Source

• 2024 Jeep Wrangler Specifications (2024_JP_Wrangler_SP.pdf), 11 pp. (official Stellantis North America media site)

Everything on this page is read from Jeep's 2024 Wrangler specifications sheet for gas-engine models. The Wrangler 4xe has its own sheet and is not covered here. Jeep prints the towing and payload table for the 4-door only. Optional equipment and packages can change a vehicle's figures; check Jeep's current documentation or your VIN before relying on a number.
